定頻系列 (Fixed-frequency series)　 變頻系列 (Frequency-variable series)



Model
 F.A.D at Working Pressure Motor
Power
 Air Outlet
Pipe Dia
 Gross
Weight
 Compressor

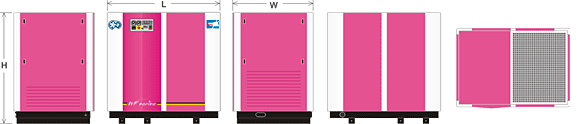

Dimensons
 Water
Pipe Dia
 Cooling
Water Flow
 Cooling
Tower
7Bar
 10Bar
 13Bar
 15Bar
m3/min
 cfm m3/min cfm m3/min cfm m3/min cfm kw inch kgs L x W x H (mm) Inch LT/min RT
W102-03 0.33 12 0.2 07 0.15 5 0.11 04 2.2 G 1/2 155 600x620x980 ** ** **
W102-05 0.59 21 0.43 15 0.32 11 0.26 09 3.7 G 1/2 180 600x620x980 **
 **
 **
W402-07
 0.97
 34
 0.77
 27
 0.62
 22
 0.55
 19
 5.6
 G 3/4
 260
 810x680x1100
 **
 **
 **
W402-10
 1.25
 44
 0.87
 31
 0.78
 27
 0.75
 26
 7.5
 G 3/4
 270
 810x680x1100
 **
 **
 **
W402-15
 1.88
 66
 1.57
 55
 1.34
 47
 1.22
 43
 11
 G 1
 360
 910x770x1220
 **
 **
 **
W502-20
 2.75
 97
 2.20
 74
 1.80 63 1.7
 56 15
 G 1
 445
 1000x850x1380
 **
 **
 **
W602-30
 3.92
 138
 3.37
 119
 2.92
 103
 2.3
 81
 22
 G 1-1/4
 585
 1120x950x1480
 1
 60
 8
W602-40
 5.1
 180
 4.36
 154
 3.84
 136
 3.4
 120
 30
 G 1-1/4
 630
 1120x950x1480
 1
 73
 8
W802-50
 6.40
 226
 5.11
 180
 4.17
 147
 4.0
 141
 37
 G 1-1/2
 920
 1350x1050x1680
 1
 90
 8
W802-60 7.84 276 6.32 223 5.19 183 5.0 176 45 G 1-1/2 935 1350x1050x1680 1 90 8
Performance data is according to ISO 1217 with tolerance of ±5% any technical changes reverse max. Working
Model
 F.A.D at Working Pressure Motor
Power
 Air Outlet
Pipe Dia
 Gross
Weight
 Compressor
Dimensons
 Water
Pipe Dia
 Cooling
Water Flow
 Cooling
Tower
7Bar
 10Bar
 13Bar
 15Bar
m3/min
 cfm m3/min cfm m3/min cfm m3/min cfm kw inch kgs L x W x H (mm) Inch LT/min RT
W902-75
 9.48
 335 7.82 276 6.5 229 5.8 205 56
G 2
 1200
 1850x1250x1770
 1.25
 108
 10
W1002-100
 14.1 498 11.9 420 10.2 360 9.3 328 75
 G 2-1/2
4		 1800
 1850x1250x1770
 1.25
 180
 20
W1002-125
 16.9 596 14.6 515 2.75 450 11.7 413 94
 G 2-1/2
 2080
 2100x1550x1770
 2.0
 225
 20
W1002-150
 19.5 688 17 600 15.1 533 13.6 480 110
 G3
 3180
 2280x1650x1880
 2.0
 270
 25
W1102-175
 23.6 835 19.4 684 16.5 581 15 530 130
 G3
 3280
 2380x1780x1880
 2.0
 320
 30
W1102-200
 25.7
 907
 22.1
 780
 18.8
 663
 18
 635
 150
 G3
 3480
 2380x1780x1880
 2.5
 360
 40
W1102-250
 33
 1165
 28.5
 1006
 24.5
 865
 21.8
 770
 187
 G4
 4600
 2600x1900x1900
 3.5
 450
 60
W2002-300
 38.3
 1352
 34
 1200
 29.5
 1040
 27.5
 970
 225
 G4
 5100
 2600x1900x1900
 3.5
 540
 60
W2002-350 44.5
 1570
 38.4
 1355
 33.5
 1182
 30.5
 1077
 262
 G4 5500
 2700x2000x1900
 3.5
 630
 60
W2002-400 50.5 1782 43.5 1535 38.4 1355 34 1200 300 G4 6000 2700x2000x1900 4 720 80
Performance data is according to ISO 1217 with tolerance of ±5% any technical changes reverse max. Working




協煒科技有限公司　地址：桃園市蘆竹區龍安街三段132巷34號
E-MAIL：wolf.comp@msa.hinet.net　TEL：(03)313-2733　FAX：(03)313-2275
